Hypertext Transfer Protocol (HTTP) is the life of the web. It's used every time you transfer a document, or make an AJAX request. But HTTP is surprisingly a relative unknown among some web developers.

This introduction will demonstrate how the set of design principles, known as REST, underpin HTTP, and allow you to embrace its fullest power by building interfaces, which can be used from nearly any device or operating system.

Envato Market also has thousands of useful code scripts, plugins and apps to help you with web development, such as HTTP Assistant, an app that helps you test online web services.

Why REST?

REST is a simple way to organize interactions between independent systems.

REST is a simple way to organize interactions between independent systems. It's been growing in popularity since 2005, and inspires the design of services, such as the Twitter API. This is due to the fact that REST allows you to interact with minimal overhead with clients as diverse as mobile phones and other websites. In theory, REST is not tied to the web, but it's almost always implemented as such, and was inspired by HTTP. As a result, REST can be used wherever HTTP can.

The alternative is building relatively complex conventions on top of HTTP. Often, this takes the shape of entire new XML-based languages. The most illustrious example is SOAP. You have to learn a completely new set of conventions, but you never use HTTP to its fullest power. Because REST has been inspired by HTTP and plays to its strengths, it is the best way to learn how HTTP works.

After an initial overview, we'll examine each of the HTTP building blocks: URLs, HTTP verbs and response codes. We'll also review how to use them in a RESTful way. Along the way, we'll illustrate the theory with an example application, which simulates the process of keeping track of data related to a company's clients through a web interface.

HTTP

HTTP is the protocol that allows for sending documents back and forth on the web.

HTTP is the protocol that allows for sending documents back and forth on the web. A protocol is a set of rules that determines which messages can be exchanged, and which messages are appropriate replies to others. Another common protocol is POP3, which you might use to fetch email on your hard disk.

In HTTP, there are two different roles: server and client. In general, the client always initiates the conversation; the server replies. HTTP is text based; that is, messages are essentially bits of text, although the message body can also contain other media. Text usage makes it easy to monitor an HTTP exchange.

HTTP messages are made of a header and a body. The body can often remain empty; it contains data that you want to transmit over the network, in order to use it according to the instructions in the header. The header contains metadata, such as encoding information; but, in the case of a request, it also contains the important HTTP methods. In the REST style, you will find that header data is often more significant than the body.

Spying HTTP at Work

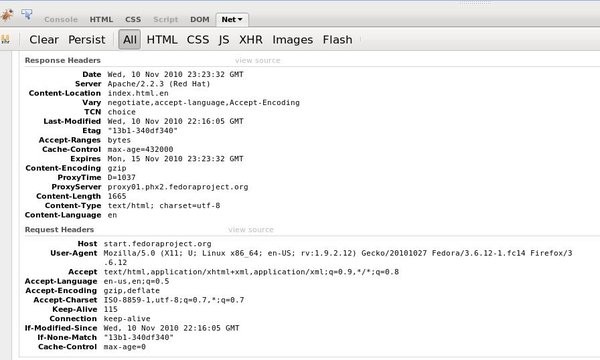

If you use Chrome Developer Tools, or Firefox with the Firebug extension installed, click on the Net panel, and set it to enabled. You will then have the ability to view the details of the HTTP requests as you surf. For example:

Another helpful way to familiarize yourself with HTTP is to use a dedicated client, such as cURL.

cURL is a command line tool that is available on all major operating systems.

Once you have cURL installed, type:

curl -v google.com

This will display the complete HTTP conversation. Requests are preceded by >, while responses are preceded by <.

URLS

URLs are how you identify the things that you want to operate on. We say that each URL identifies a resource. These are exactly the same URLs which are assigned to web pages. In fact, a web page is a type of resource. Let's take a more exotic example, and consider our sample application, which manages the list of a company's clients:

/clients

will identify all clients, while

/clients/jim

will identify the client, named 'Jim', assuming that he is the only one with that name.

In these examples, we do not generally include the hostname in the URL, as it is irrelevant from the standpoint of how the interface is organized. Nevertheless, the hostname is important to ensure that the resource identifier is unique all over the web. We often say you send the request for a resource to a host. The host is included in the header separately from the resource path, which comes right on top of the request header:

GET /clients/jim HTTP/1.1

Host: example.com

Resources are best thought of as nouns. For example, the following is not RESTful:

/clients/add

This is because it uses a URL to describe an action. This is a fairly fundamental point in distinguishing RESTful from non-RESTful systems.

Finally, URLs should be as precise as needed; everything needed to uniquely identify a resource should be in the URL. You should not need to include data identifying the resource in the request. This way, URLs act as a complete map of all the data your application handles.

But how do you specify an action? For example, how do you tell that you want a new client record created instead of retrieved? That is where HTTP verbs come into play.

HTTP Verbs

Each request specifies a certain HTTP verb, or method, in the request header. This is the first all caps word in the request header. For instance,

GET / HTTP/1.1

means the GET method is being used, while

DELETE /clients/anne HTTP/1.1

means the DELETE method is being used.

HTTP verbs tell the server what to do with the data identified by the URL.

HTTP verbs tell the server what to do with the data identified by the URL. The request can optionally contain additional information in its body, which might be required to perform the operation - for instance, data you want to store with the resource. You can supply this data in cURL with the -d option.

If you've ever created HTML forms, you'll be familiar with two of the most important HTTP verbs: GET and POST. But there are far more HTTP verbs available. The most important ones for building RESTful API are GET, POST, PUT and DELETE. Other methods are available, such as HEAD and OPTIONS, but they are more rare (if you want to know about all other HTTP methods, the official source is IETF).

GET

GET is the simplest type of HTTP request method; the one that browsers use each time you click a link or type a URL into the address bar. It instructs the server to transmit the data identified by the URL to the client. Data should never be modified on the server side as a result of a GET request. In this sense, a GET request is read-only, but of course, once the client receives the data, it is free to do any operation with it on its own side - for instance, format it for display.

PUT

A PUT request is used when you wish to create or update the resource identified by the URL. For example,

PUT /clients/robin

might create a client, called Robin on the server. You will notice that REST is completely backend agnostic; there is nothing in the request that informs the server how the data should be created - just that it should. This allows you to easily swap the backend technology if the need should arise. PUT requests contain the data to use in updating or creating the resource in the body. In cURL, you can add data to the request with the -d switch.

curl -v -X PUT -d "some text"

DELETE

DELETE should perform the contrary of PUT; it should be used when you want to delete the resource identified by the URL of the request.

curl -v -X DELETE /clients/anne

This will delete all data associated with the resource, identified by /clients/anne.

POST

POST is used when the processing you wish to happen on the server should be repeated, if the POST request is repeated (that is, they are not idempotent; more on that below). In addition, POST requests should cause processing of the request body as a subordinate of the URL you are posting to.

In plain words:

POST /clients/

should not cause the resource at /clients/, itself, to be modified, but a resource whose URL starts with /clients/. For instance, it could append a new client to the list, with an id generated by the server.

/clients/some-unique-id

PUT requests are used easily instead of POST requests, and vice versa. Some systems use only one, some use POST for create operations, and PUT for update operations (since with a PUT request you always supply the complete URL), some even use POST for updates and PUT for creates.

Often, POST requests are used to trigger operations on the server, which do not fit into the Create/Update/Delete paradigm; but this, however, is beyond the scope of REST. In our example, we'll stick with PUT all the way.

Classifying HTTP Methods

Representations

The HTTP client and HTTP server exchange information about resources identified by URLs.

We can sum up what we have learned so far in the following way: the HTTP client and HTTP server exchange information about resources identified by URLs.

We say that the request and response contain a representation of the resource. By representation, we mean information, in a certain format, about the state of the resource or how that state should be in the future. Both the header and the body are pieces of the representation.

The HTTP headers, which contain metadata, are tightly defined by the HTTP spec; they can only contain plain text, and must be formatted in a certain manner.

The body can contain data in any format, and this is where the power of HTTP truly shines. You know that you can send plain text, pictures, HTML, and XML in any human language. Through request metadata or different URLs, you can choose between different representations for the same resource. For example, you might send a webpage to browsers and JSON to applications.

The HTTP response should specify the content type of the body. This is done in the header, in the Content-Type field; for instance:

Content/Type: application/json

For simplicity, our example application only sends JSON back and forth, but the application should be architectured in such a way that you can easily change the format of the data, to tailor for different clients or user preferences.

HTTP Client Libraries

cURL is, more often than not, the HTTP client solution of choice for PHP developers.

To experiment with the different request methods, you need a client, which allows you to specify which method to use. Unfortunately, HTML forms do not fit the bill, as they only allow you to make GET and POST requests. In real life, APIs are accessed programmatically through a separate client application, or through JavaScript in the browser.

This is the reason why, in addition to the server, it is essential to have good HTTP client capabilities available in your programming language of choice.

A very popular HTTP client library is, again, cURL. You've already been familiarized with the cURL command from earlier in this tutorial. cURL includes both a standalone command line program, and a library that can be used by various programming languages. In particular, cURL is, more often than not, the HTTP client solution of choice for PHP developers. Other languages, such as Python, offer more native HTTP client libraries.

Setting up the Example Application

I want to expose the low-level functionality as much as possible.

Our example PHP application is extremely barebones. I want to expose the low-level functionality as much as possible, without any framework magic. I also did not want to use a real API, such as Twitter's, because they are subject to change unexpectedly, you need to setup authentication, which can be a hassle, and, obviously, you cannot study the implementation.

To run the example application, you will need to install PHP5 and a web server, with some mechanism to run PHP. The current version must be at least version 5.2 to have access to the json_encode() and json_decode() functions.

As for servers, the most common choice is still Apache with mod_php, but you're free to use any alternatives that you're comfortable with. There is a sample Apache configuration, which contains rewrite rules to help you setup the application quickly. All requests to any URL, starting with /clients/, must be routed to our server.php file.

In Apache, you need to enable mod_rewrite and put the supplied mod_rewrite configuration somewhere in your Apache configuration, or your .htacess file. This way, server.php will respond to all requests coming from the server. The same must be achieved with Nginx, or whichever alternative server you decide to use.

How the Example Applications Works

There are two keys to processing requests the REST way. The first key is to initiate different processing, depending on the HTTP method - even when the URLs are the same. In PHP, there is a variable in the $_SERVER global array, which determines which method has been used to make the request:

$_SERVER['REQUEST_METHOD']

This variable contains the method name as a string, for instance 'GET', 'PUT', and so on.

The other key is to know which URL has been requested. To do this, we use another standard PHP variable:

$_SERVER['REQUEST_URI']

This variable contains the URL starting from the first forward slash. For instance, if the host name is 'example.com', 'http://example.com/' would return '/', while 'http://example.com/test/' would return '/test/'.

Let's first attempt to determine which URL has been called. We only consider URLs starting with 'clients'. All other are invalid.

$resource = array_shift($paths);

if ($resource == 'clients') {
    $name = array_shift($paths);

    if (empty($name)) {
        $this->handle_base($method);
    } else {
        $this->handle_name($method, $name);
    }

} else {
    // We only handle resources under 'clients'
    header('HTTP/1.1 404 Not Found');
}

We have two possible outcomes:

• The resource is the clients, in which case, we return a complete listing
• There is a further identifier

If there is a further identifier, we assume it is the client's name, and, again, forward it to a different function, depending on the method. We use a switch statement, which should be avoided in a real application:

switch($method) {
  case 'PUT':
      $this->create_contact($name);
      break;

  case 'DELETE':
      $this->delete_contact($name);
      break;

  case 'GET':
      $this->display_contact($name);
      break;

  default:
      header('HTTP/1.1 405 Method Not Allowed');
      header('Allow: GET, PUT, DELETE');
      break;
  }

Response Codes

HTTP response codes standardize a way of informing the client about the result of its request.

You might have noticed that the example application uses the PHP header(), passing some strange looking strings as arguments. The header() function prints the HTTP headers and ensures that they are formatted appropriately. Headers should be the first thing on the response, so you shouldn't output anything else before you are done with the headers. Sometimes, your HTTP server may be configured to add other headers, in addition to those you specify in your code.

Headers contain all sort of meta information; for example, the text encoding used in the message body or the MIME type of the body's content. In this case, we are explicitly specifying the HTTP response codes. HTTP response codes standardize a way of informing the client about the result of its request. By default, PHP returns a 200 response code, which means that the response is successful.

The server should return the most appropriate HTTP response code; this way, the client can attempt to repair its errors, assuming there are any. Most people are familiar with the common 404 Not Found response code, however, there are a lot more available to fit a wide variety of situations.

Keep in mind that the meaning of a HTTP response code is not extremely precise; this is a consequence of HTTP itself being rather generic. You should attempt to use the response code which most closely matches the situation at hand. That being said, do not worry too much if you cannot find an exact fit.

Here are some HTTP response codes, which are often used with REST:

200 OK

This response code indicates that the request was successful.

201 Created

This indicates the request was successful and a resource was created. It is used to confirm success of a PUT or POST request.

400 Bad Request

The request was malformed. This happens especially with POST and PUT requests, when the data does not pass validation, or is in the wrong format.

404 Not Found

This response indicates that the required resource could not be found. This is generally returned to all requests which point to a URL with no corresponding resource.

401 Unauthorized

This error indicates that you need to perform authentication before accessing the resource.

405 Method Not Allowed

The HTTP method used is not supported for this resource.

409 Conflict

This indicates a conflict. For instance, you are using a PUT request to create the same resource twice.

500 Internal Server Error

When all else fails; generally, a 500 response is used when processing fails due to unanticipated circumstances on the server side, which causes the server to error out.

Exercising the Example Application

Let's begin by simply fetching information from the application. We want the details of the client, 'jim', so let's send a simple GET request to the URL for this resource:

curl -v http://localhost:80/clients/jim

This will display the complete message headers. The last line in the response will be the message body; in this case, it will be JSON containing Jim's address (remember that omitting a method name will result in a GET request; also replace localhost:80 with the server name and port you are using).

Next, we can obtain the information for all clients at once:

curl -v http://localhost:80/clients/

To create a new client, named Paul...

curl -v -X PUT http://localhost:80/clients/paul -d '{"address":"Sunset Boulevard" }

and you will receive the list of all clients now containing Paul as a confirmation.

Finally, to delete a client:

curl -v -X DELETE http://localhost:80/clients/anne

You will find that the returned JSON no longer contains any data about Anne.

If you try to retrieve a non-existing client, for example:

curl -v http://localhost:80/clients/jerry

You will obtain a 404 error, while, if you attempt to create a client which already exists:

curl -v -X PUT http://localhost:80/clients/anne

You will instead receive a 409 error.

Conclusion

In general, the less assumptions beyond HTTP you make, the better.

It's important to remember that HTTP was conceived to communicate between systems, which share nothing but an understanding of the protocol. In general, the less assumptions beyond HTTP you make, the better: this allows the widest range of programs and devices to access your API.

I used PHP in this tutorial, because it is most likely the language most familiar to Nettuts+ readers. That said, PHP, although designed for the web, is probably not the best language to use when working in a REST way, as it handles PUT requests in a completely different fashion than GET and POST.

Beyond PHP, you might consider the following:

• The various Ruby frameworks (Rails and Sinatra)
• There's excellent REST support in Python. Plain Django and WebOb, or Werkzeug should work
• node.js has excellent support for REST

Among the applications which attempt to adhere to REST principles, the classic example is the Atom Publishing Protocol, though it's honestly not used too often in practice. For a modern application, which is built on the philosophy of using HTTP to the fullest, refer to Apache CouchDB.

And don't forget to check out the selection of code scripts, plugins and apps on Envato Market.

Have fun!
