One of the defining features of material design is the use of color to compliment and emphasize content on the screen. Using the Palette class, developers can extract prominent colors from a bitmap for use in their apps to customize user interface elements.

In this article, you will learn how to create a Palette object from a bitmap. Contained within each Palette is a set of Swatch objects that will allow you to work with specific color profiles and a list of visible colors from the image.

1. Creating a Palette

To get started, you will need to import the palette support library into your project by including the following line in the dependencies node of your project's build.gradle file. Since this is a v7 support library, the Palette related classes are available back to Android API 7.

compile 'com.android.support:palette-v7:+'

After running a gradle sync on your project, you are able to generate a Palette from a bitmap. This can be done using the Palette.Builder either synchronously by calling the generate() method without any parameters, or asynchronously by calling generate(Palette.PaletteAsyncListener listener). Because it can take time to create the Palette, it is recommended that the synchronous method only be called from a background thread. In addition to the two generate methods, the Palette.Builder class has a couple of other useful methods that come with their own trade-offs:

• maximumColorCount(int numOfSwatches) allows you to change how many Swatch objects should be generated from the bitmap. The default for the builder is 16. The more Swatch objects you generate, the longer it will take to generate the Palette.
• resizeBitmapSize(int maxDimension) resizes the bitmap so that its largest dimension will only be as large as the passed value of this method. The larger your bitmap, the longer it will take to generate a Palette. Likewise, smaller bitmaps will process faster, but you will lose out on color precision.

The following code snippet shows how to create a bitmap from a local resource and asynchronously create a Palette object.

Bitmap bitmap = BitmapFactory.decodeResource( getResources(), R.drawable.union_station );
Palette.from( bitmap ).generate( new Palette.PaletteAsyncListener() {
    @Override
    public void onGenerated( Palette palette ) {
        //work with the palette here
    }
});

Once you have a Palette, you can begin working with the associated Swatch objects.

2. Swatches

Swatch objects represent colors generated from an image's palette. Each Swatch contains:

• an RGB (Red, Green, Blue) and HSL (Hue, Saturation, Lightness) value for a color.
• a population value reflecting the number of pixels represented by the Swatch.
• a color value that can be used for title text when displayed on the Swatch's primary color.
• a color value that can be used for a body of text when displayed on the Swatch's primary color.

Swatch Profiles

Each Palette has a set of six predefined color profiles:

• vibrant
• light vibrant
• dark vibrant
• muted
• light muted
• dark muted

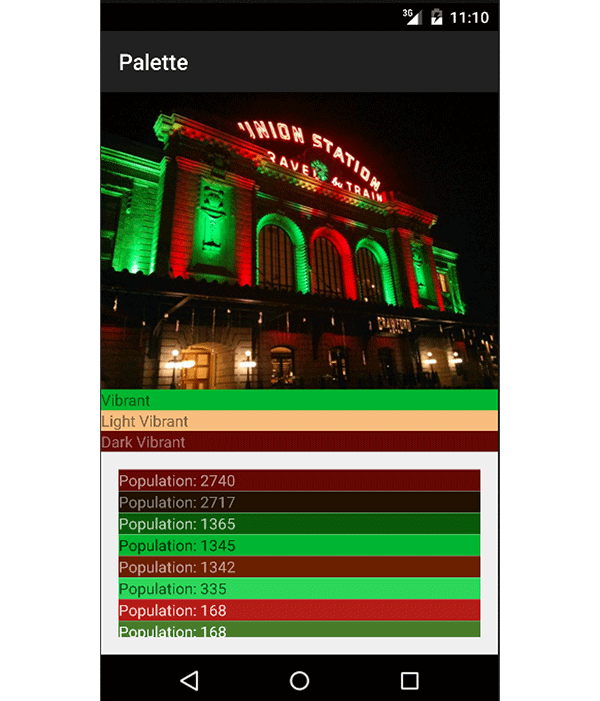

While each of these can be useful depending on your app design, vibrant and dark vibrant are the most commonly used. One thing to note is that any of these profiles may be null, so you should handle this situation accordingly. In the sample project, in the onGenerated(Palette palette) method from the asynchronous Palette.Builder, you can see how to extract each profile Swatch.

setViewSwatch( mVibrantTextView, palette.getVibrantSwatch() );
setViewSwatch( mLightVibrantTextView, palette.getLightVibrantSwatch() );
setViewSwatch( mDarkVibrantTextView, palette.getDarkVibrantSwatch() );
setViewSwatch( mMutedTextView, palette.getMutedSwatch() );
setViewSwatch( mLightMutedTextView, palette.getLightMutedSwatch() );
setViewSwatch( mDarkMutedTextView, palette.getDarkMutedSwatch() );

setViewSwatch(TextView view, Palette.Swatch swatch) is a method that accepts a Swatch and TextView, and sets the TextView background and text colors from values in the Swatch. You'll notice that we first check to see if the Swatch is null and, if it is, we simply hide the view.

public void setViewSwatch( TextView view, Palette.Swatch swatch ) {
    if( swatch != null ) {
        view.setTextColor( swatch.getTitleTextColor() );
        view.setBackgroundColor( swatch.getRgb() );
        view.setVisibility( View.VISIBLE );
    } else {
        view.setVisibility( View.GONE );
    }
}

Additional Swatches

In addition to the standard profile Swatch objects, each Palette contains a list of general Swatch objects generated from the bitmap. These can be retrieved from the Palette as a List by using the getSwatches() method.

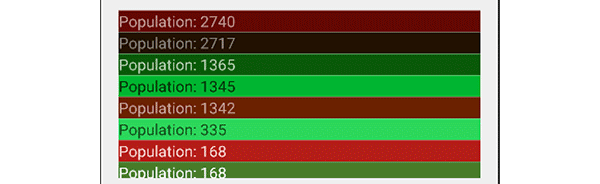

In the sample project, this List is retrieved and placed into an ArrayAdapter<Palette.Swatch> that then displays the Swatch primary color and body text color, as well as the number of pixels represented in the bitmap by this Swatch. One thing to pay attention to is that the list is not in any particular order. In the sample project, I have sorted the items by their population value.

for( Palette.Swatch swatch : palette.getSwatches() ) {
    mAdapter.add( swatch );
}

mAdapter.sortSwatches();
mAdapter.notifyDataSetChanged();

In this code snippet, mAdapter is the adapter of Swatch objects with the following methods:

@Override
public View getView( int position, View convertView, ViewGroup parent ) {
    ViewHolder holder;
    if( convertView == null ) {
        holder = new ViewHolder();
        convertView = LayoutInflater.from( getContext() ).inflate( R.layout.color_item, parent, false );
        holder.view = (TextView) convertView.findViewById( R.id.view );
        convertView.setTag( holder );
    } else {
        holder = (ViewHolder) convertView.getTag();
    }

    holder.view.setBackgroundColor( getItem( position ).getRgb() );
    holder.view.setTextColor( getItem( position ).getBodyTextColor() );
    holder.view.setText( "Population: " + getItem( position ).getPopulation() );

    return convertView;
}

public void sortSwatches() {
    sort(new Comparator<Palette.Swatch>() {
        @Override
        public int compare( Palette.Swatch lhs, Palette.Swatch rhs ) {
            return rhs.getPopulation() - lhs.getPopulation();
        }
    });
}

public class ViewHolder {
    TextView view;
}

Conclusion

In this article, you have learned about the Palette support library and how to extract swatches of color from a bitmap. This will allow you to customize your user interface elements, such as backgrounds and text, so that they compliment images within your app. When coupled with the Color and ColorUtil classes (available in the v4 support library), you have even more options available for the colorization of your app.
