It is necessary for web developers to understand and know how to use browser developer tools, and in this tutorial, I will introduce you to the Chrome Developer Tools. You'll learn some of the basics, starting with marking up and styling a web page.

A quick note to existing developer tool users: The purpose of this tutorial is to provide a relatively basic introduction to Chrome's developer tools. If you use any browsers' development tool, such as Firebug in Firefox or IE's development tools, then you may find that you already know a lot of the information covered in this particular tutorial.

Introduction

Browser development tools allow you to drill down into a web page and inspect just about everything in the page. For example you can:

• view an element's corresponding HTML code (for example a header of some sort)
• get an overview of the CSS used in a page and how CSS applies to an element
• modify CSS in real time and visually see your changes in the browser
• view the HTTP requests made by the browser
• run JavaScript code within the context of the page
• identify performance bottlenecks and retrieve a variety of performance metrics
• poke around with offline resources to find out what data the page in question is storing locally

Browser Developer Tools

Before digging into Chrome's developer tools, I want to give you just a brief look at the development tools provided by the major browsers. Note that this isn't a comprehensive look at these tools and their features, but I do provide basic information for each tool.

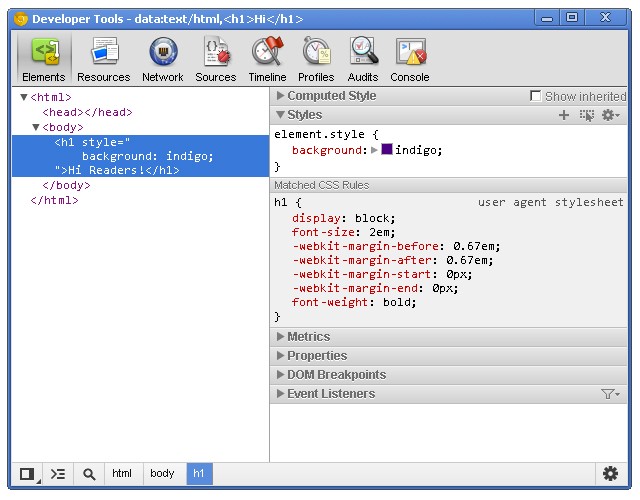

Chrome Developer Tools

You can use the developer tools within Chrome, Chrome Canary and even Chromium.

• Browser Download: google.com/chrome
• To open: Control + Shift + i
• Documentation: developers.google.com/chrome-developer-tools
• Notes: Can also be opened by right-clicking an element on the page and selecting 'Inspect Element'

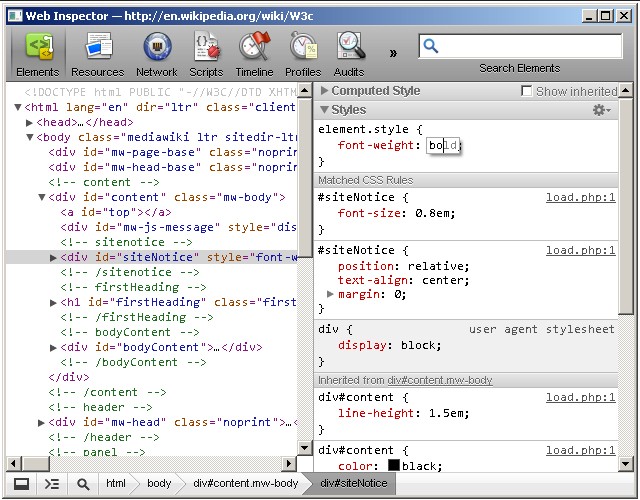

Safari WebKit Inspector

Safari uses code from the Web Inspector repository; however, you may find that it's not updated as often as Chrome.

• Browser Download: apple.com/safari/
• To open: Control + alt + i or "Develop" > "Show Web Inspector"
• Documentation: developer.apple.com/library/safari/documentation
• Notes: Can also be opened by right-clicking an element on the page and selecting 'Inspect Element'

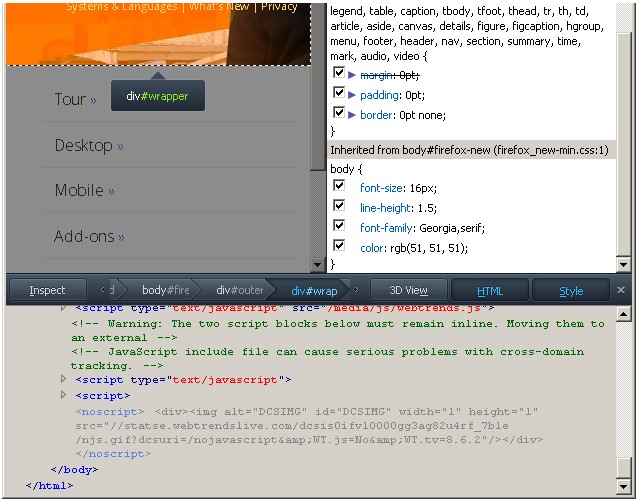

Firefox Developer Tools

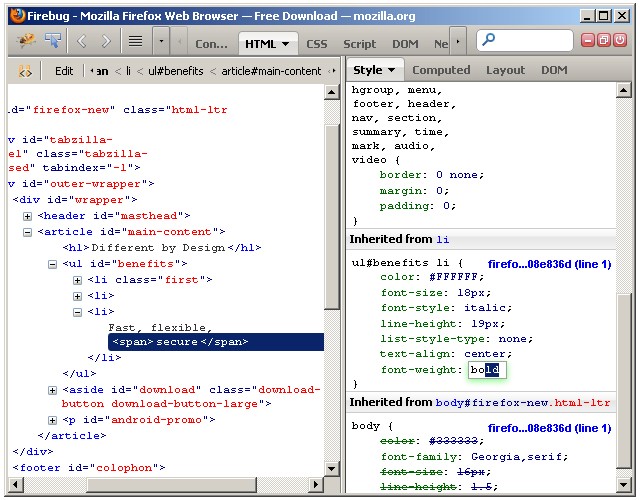

Firebug

Firefox now comes with its own set of developer tools which has a nice focus on the visual side of things. For those who are used to Firebug, that's still available as an add-on.

• Browser Download: mozilla.org/en-US/firefox
• To open: right-click on page > Inspect Element
• Documentation: developer.mozilla.org/en-US/docs/Tools
• Notes: Firebug is an extension for Firefox.

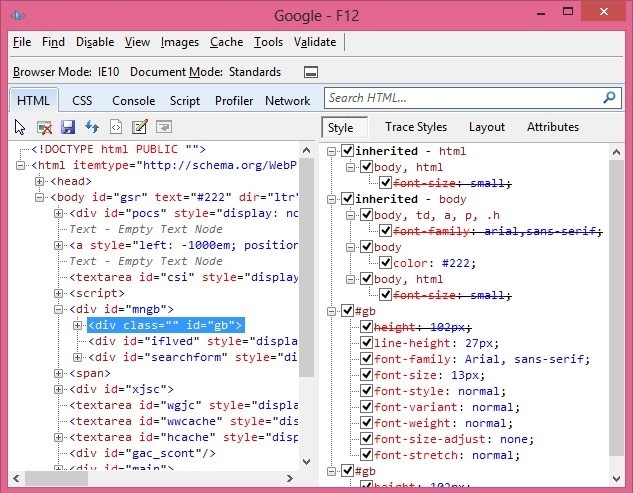

Internet Explorer Developer Tools

• Browser Download: microsoft.com/ie
• To open: F12
• Documentation: msdn.microsoft.com/en-us/library/dd565628
• Notes: If you have Chrome Frame installed, the Chrome developer tools will work with IE.

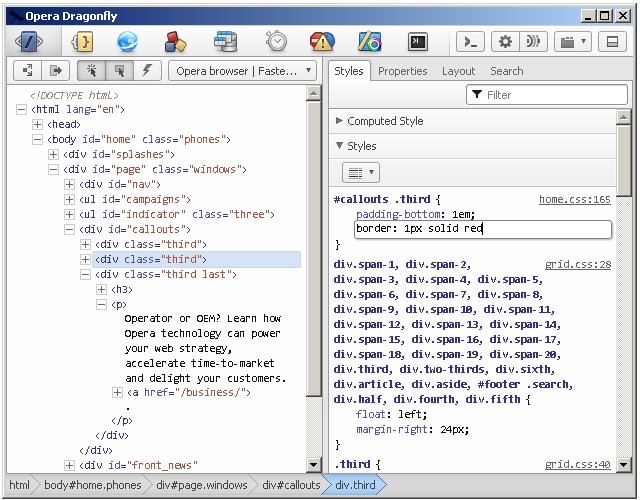

Opera Dragonfly

• Browser Download: opera.com/browser/
• To open: Control + Shift + i
• Documentation: opera.com/dragonfly/documentation/
• Notes: Dragonfly is part of Opera

Getting Started

Note: this tutorial uses the Canary build of Chrome. Therefore, some features covered in this article may or may not be available in the beta or stable releases.

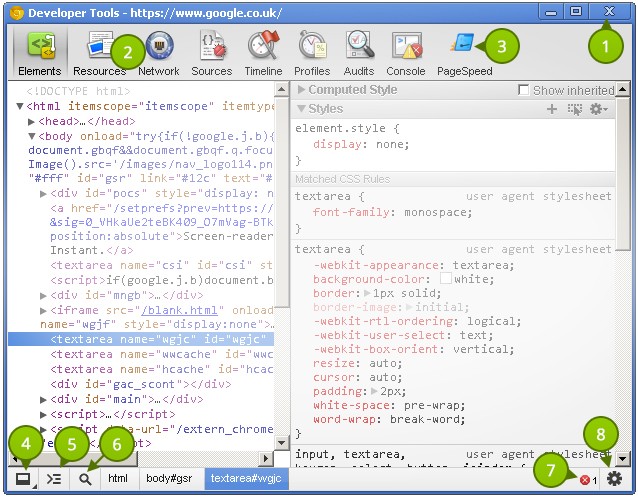

Before taking a look at the contents of the Elements panel, let's take some time to understand the little controls near the top and bottom. Please refer to the numbered list below the following image that explains the different UI elements in the tool window.

1. Close Developer Tools.
2. Buttons to select different tool panels (Elements is currently selected).
3. A custom tool installed by a third-party extention (PageSpeed).
4. Change the layout of the developer tools.
5. Show the console (will be covered in a different tutorial).
6. Select an element in the tool by clicking on it in the page.
7. JavaScript errors in the page.
8. Open the settings screen overlay.

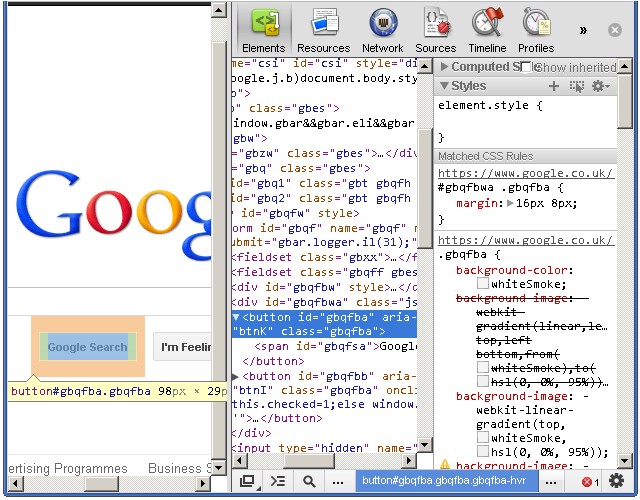

It's good to choose a layout you are comfortable with. Click once on the bottom-left corner and notice how the developer tools pane detaches itself from the main window--perfect for multi-monitor setups. Clicking and holding on the bottom left icon allows you dock to the right, like this:

Elements Panel

The Elements panel lists the page's markup as it is rendered in the browser. Any change made to the DOM via JavaScript is reflected in the elements found in this panel.

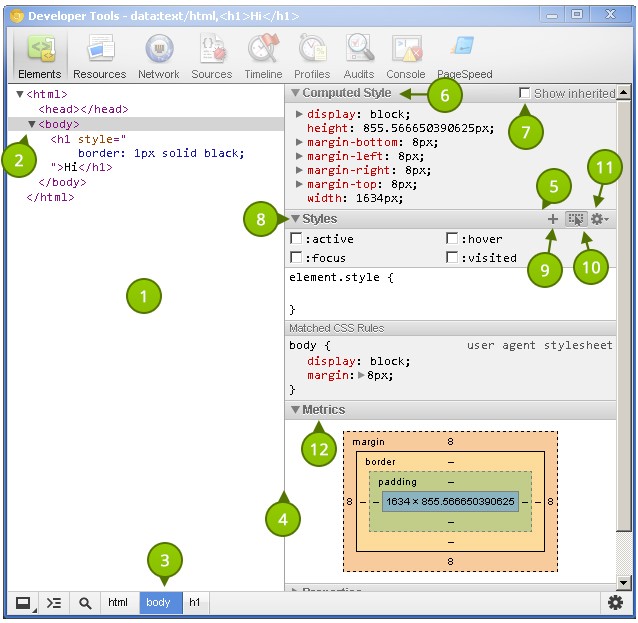

Let's get familiar with this panel. As before, refer to the list items below the following screenshot that identify the different parts of the Elements panel.

The power given to us by the dev tools is nothing short than amazing.

1. The elements as rendered within the document.
2. The arrow indicates that the element has children. The position of the arrow signifies whether the element is collapsed or expanded.
3. Elemental breadcrumbs starting with the document element (<html/>) and ending with the currently selected element. Hovering over each crumb highlights the respective element in the browser window.
4. A movable divider to separate the elements list from the style information.
5. Togglable panes that contain styling (and more) information.
6. Computed Styles show the styling information the browser calculated for the selected element.
7. Shows you the styles inherited from the browser's default styles that are applied to the selected element.
8. Show you user added styles, such as: styles retrieved from the page's corresponding styles.css file, styles added via JavaScript, and styles added via the developer tools.
9. The "New style rule" button. It creates a new style rule for the selected element.
10. Toggle Element State lets you trigger user initiated states such as :hover (the user hovering over something with their mouse, :active, and more. The image shows the button in its "on" state; it is off by default.

The font section displays only the fonts that the browser has had to download.

11. Allows you to set the preferred format for color values. You can keep the default ("as authored"), change everything to hex, use RGB, or even set it to HSL.
12. Visualizes the element's box by taking margin, border, and padding into account.

Extra Information

• What: The Elements panel allows for viewing and editing elements and style information.
• Where: It's the first panel. You can also access it by right-clicking an element on the page and selecting Inspect element.
• Why: There are a number of use cases. You may wish to modify the DOM by deleting a node or adding a new one. Markup aside, the elements panel is a great place to see the applied styles of a specific node. You can also add and remove styles, as well as create new rules to possibly add to your stylesheets.

DOM Modifications

Modifying the DOM within the Elements panel is a fairly straightforward process. To delete a node, simply right-click it and select Delete node. As you might expect, deleting a parent node also deletes its children. Handy tip: You can also press the delete key on your keyboard to delete the selected node.

Changing an element's type is possible by double clicking on the element name itself. For example: the p portion on a paragraph tag. Naturally, changing an element from one type to another causes both the opening and closing tags to change.

Viewing the page’s resources is essential for debugging.

Adding attributes can be achieved by right-clicking on the element and selecting Add attribute. The cursor immediately positions itself where you would expect it to, and you can start typing the attributes you want to add to the element. For example: class="title". Pressing the tab key on your keyboard positions the cursor to the next attribute position.

Editing attributes is similar to adding them. Find the attribute you want to edit, and double click either the attribute name or its value. The former highlights the attribute name, and the latter highlights the value.

Raw HTML editing is enabled by right-clicking on an element and selecting Edit as HTML.

Locating Elements

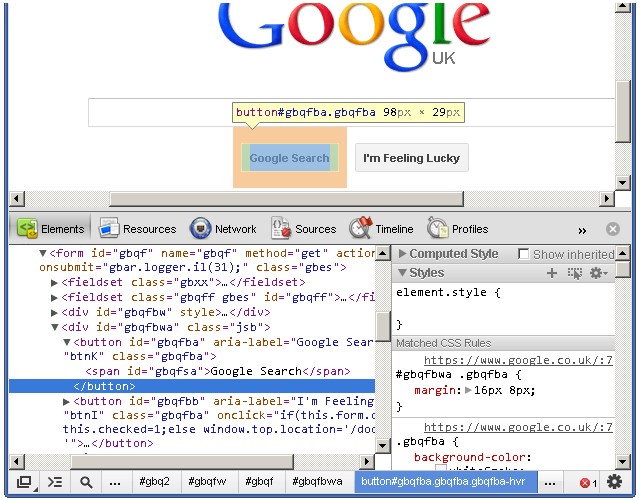

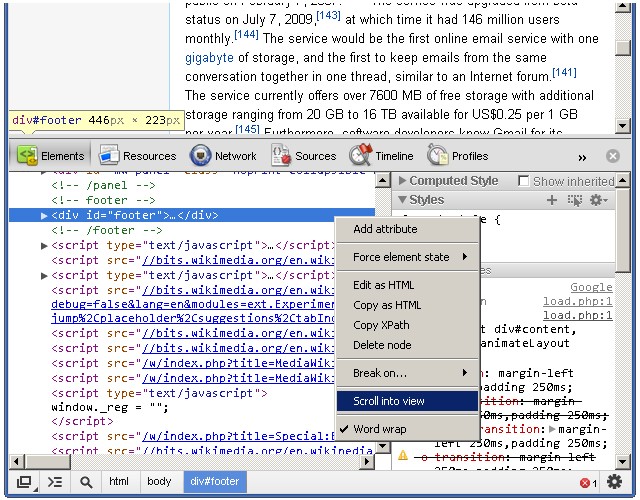

The developer tools provide a few useful techniquies for locating elements in the document. Hovering over elements in the Elements pane causes the corresponding rendered elements to be highlighted in the page. This is a great way to find which element in developer tools matches corresponds with the element in the page.

Naturally, we do not see elements outside of the browser's viewport highlighted when hovering over the corresponding elements in the Elements pane. Fortunately, we do see a tooltip indicating the direction of the out-of-viewport element. The icing on the cake, however, is the Scroll into view feature found within an element's context menu. It does exactly what its says: it scrolls the element into view.

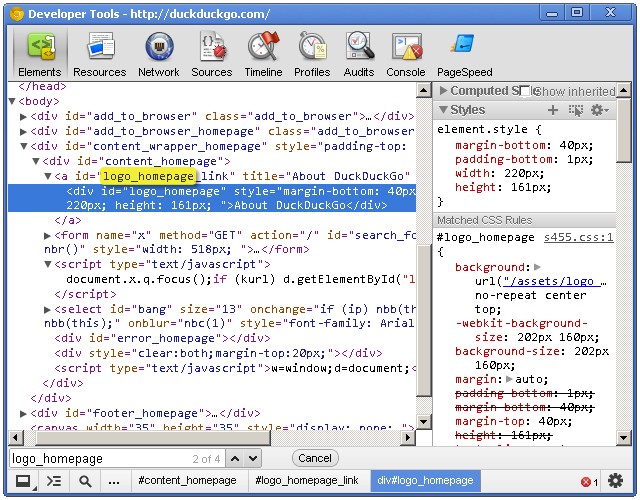

The developer tools also has a search feature. While the dev tools pane has focus, press Control + f to open the search box. This is a simple text search box; so, typing "body" will find the first instance of the text "body" in the document.

Viewing Style Information

Before we get to the style panes (the right hand side) of the Elements tab, we can access some style information directly from an element if it has all three of margins, paddings and borders specified in the stylesheet. Hovering over one of these elements gives us a glimpse at its box model, like this:

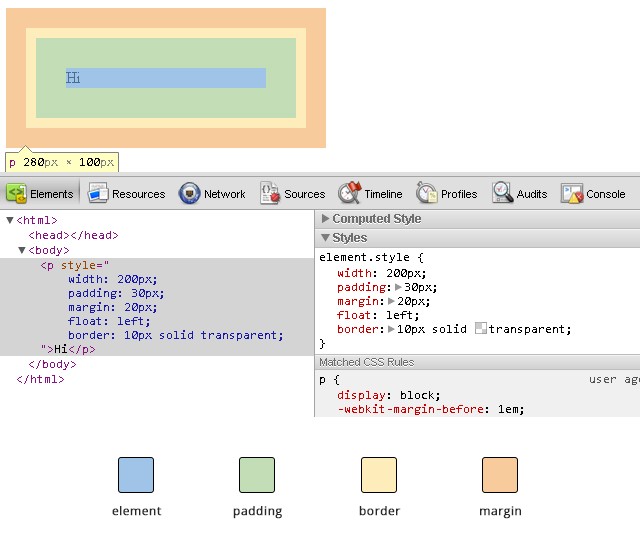

When you're wondering why some floated elements are not behaving as expected, viewing the margin/padding information can help diagnose the problem. For example, you may find that an element is wider than what you expected due to extra padding.

While on the subject of margins/paddings/borders, let's shift over to the styles area of the Elements panel and check out the "Metrics" pane.

This allows you to drill-down and identify possible problems as to why an element renders the way it does. It's also a great learning tool; if you haven't gotten your head around the CSS Box Model, then the Metrics diagram is a great visual aid.

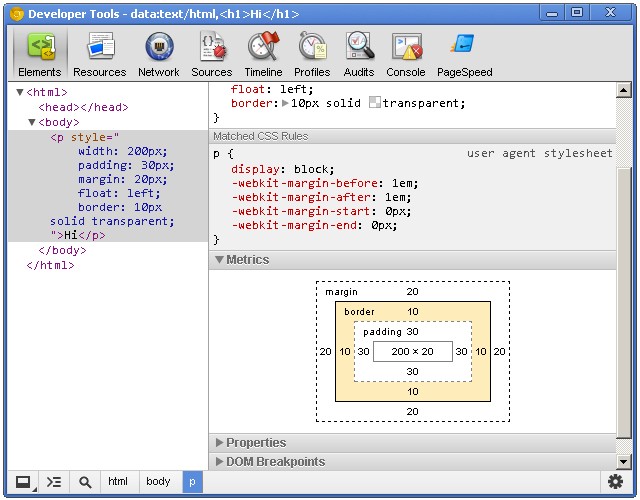

The Metrics pane lets you view element dimensions, padding, borders and margins. Notice how you can highlight over each individual portion to get a visual representation as to how it renders in the browser. The Metrics diagram also gives pixel based measurements for each portion of the element, e.g. a style rule of padding: 10px 5px (10px at the top and bottom, 5px right and left) will show the exact measurements for each side of the element.

Setting Style Information

Viewing style information is fun, but immediately tinkering with any page's style ranks much higher on the 'ol fun meter. Whether it's to educate ourselves, experiment with a design, or even communicate ideas to our peers, the power given to us by the dev tools is nothing short than amazing.

Ensure the Styles panel is expanded and click just to the right of the opening curly bracket. You'll notice a cursor automatically positions itself so that you can write a style property. Type a property name, press tab to move the cursor to the value portion, and type the value. I'm going to add the following CSS:

border: 1px solid green

The Elements panel lists the page's markup as it is rendered in the browser.

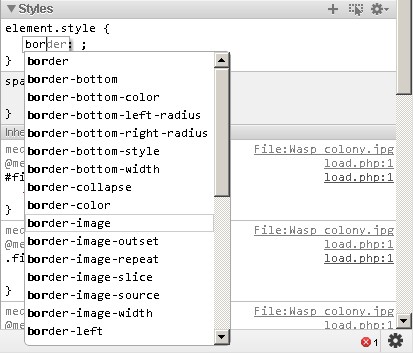

When you start typing in the property name, Chrome provides suggestions, giving you the benefit of auto-completion. Awesome! Pressing tab selects the closest match to what you typed and moves the cursor to the value position. However, pressing the right arrow key causes the cursor to remain in the property portion but fills in the closest match to what you typed.

Auto-completion also works with property values. For example, typing in "pos" *tab* "fi" *tab* creates a style property of position: fixed. When entering pixel/percentage based values, such as 15% or 10px, we can increment and decrement those values using the up and down arrow keys. To increment by 10, use shift + up arrow key.

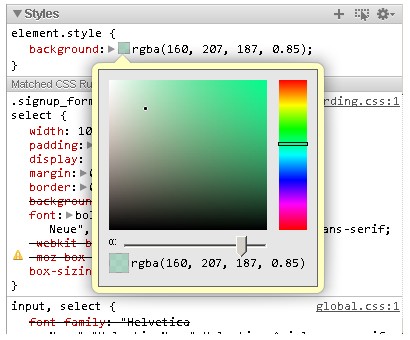

Modifying color values is a breeze thanks to the color picker. After entering a color value, single-click on the small, colored square to the left of the value to bring up the color picker tool. You can also toggle between color value formats by shift+clicking the small colored square.

You can create a new style rule by clicking the small + icon in the styles pane. Markup which looks like:

<h1 id="something">Hello</h1>

Automatically generates the following style rule:

#something { }

Markup which looks like:

<h1 class="some-class">Hello</h1>

Automatically generates the following:

.some-class { }

Markup which looks like:

<h1>Hello</h1>

Generates:

.h1 { }

Markup which looks like:

<h1 class="class1 class2 class3">Hi there</h1>

Automatically generates:

.class1.class2.class3 { }

Of course, style rules can be modified to your liking.

The Elements panel gives you a lot of power with the structure and style of the page, but the dev tools give us many more tools essential to our work.

Resources Panel

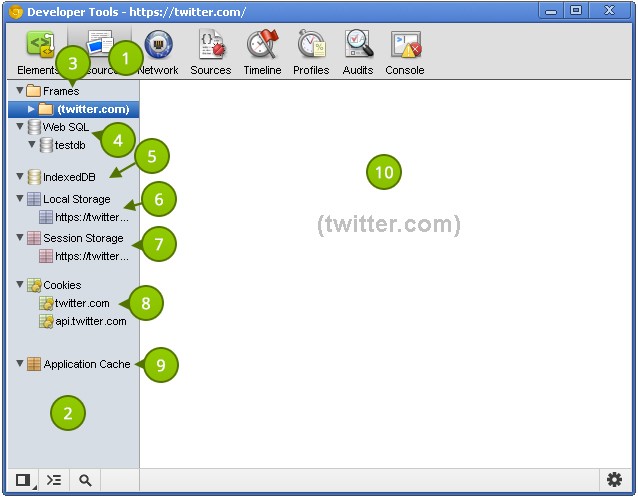

The Resources panel shows what resources a page uses. Let's take a look at what it provides.

The Metrics pane lets you view element dimensions, padding, borders and margins.

1. The button to active the Resources panel.
2. The category pane shows the various types of resources we can inspect. A resource header (such as "Frames" or "Session Storage") may have an error next to it. This indicates there is more information, and clicking on the header reveals that information. This pane is resizable; so make it as large or small as you like.
3. Page resources including fonts, images, JavaScript, CSS and the page itself can be found here. If the page uses multiple frames (for example using a frameset), then each frame appears as a separate folder within the parent "Frames" folder. This is useful for understanding the relationship between a frame and its resources.
4. If Web SQL databases are used in the page, this shows their contents.
5. Similar to Web SQL, IndexedDB displays the contents of the IndexedDB database.
6. Displays the key/value pairs stored in localStorage.
7. Displays the key/value pairs stored in sessionStorage.
8. Lists the cookies created by the domain.
9. Displays the assets cached according to the cache manifest. This section contains a lot of useful information. For example, a resource such as a JavaScript library will show the resource path, file size, and file type.
10. Displays the details regarding the selected resource in the left-hand pane.

Extra Information

The developer tools also has a search feature.

• What: The resources panel shows resources associated with the page.
• Where: The second panel, directly after the Elements panel and before the Network panel.
• Why: Viewing the page's resources is essential for debugging. You might also be curious as to what information other websites store in localStorage, cookies, or any other data storage mechanism. Additionally, certain resources, such as localStorage can be modified via the developer tools.

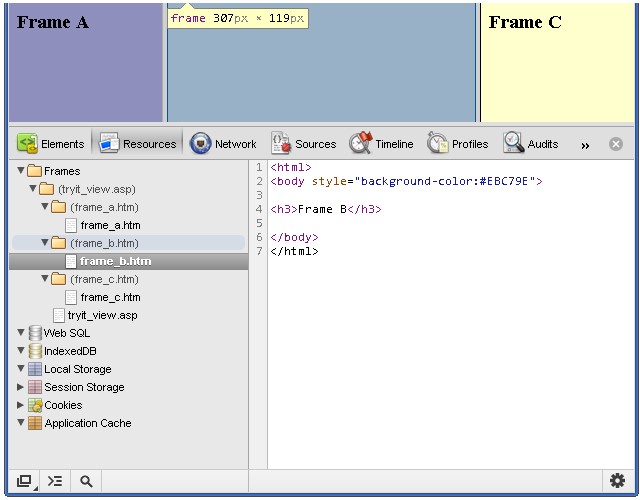

Viewing Individual Frame Contents

Despite the lack of frames usage in today's web sites, understanding how to inspect a page with multiple frames is a valuable skill to have. In the following screenshot, you'll notice a columned page where each column represents a different frame:

You can save a resource to your computer

Each frame is placed inside its own folder. Each folder contains each page's assets, and you can click on each page to show their contents. Viewing the contents of an HTML page is helpful, but we can go dig deeper into each page and view its resources. JavaScript, CSS, images, and even fonts can be viewed! Assets that contain code are displayed in the developer tools' code viewer, which comes with syntax highlighting and line numbers.

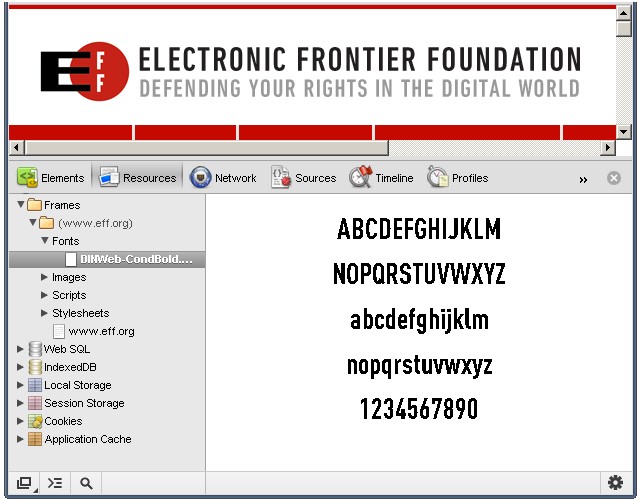

Fonts

It's important to note that system fonts, such as Arial or Helvetica, are not listed under Fonts; the font section displays only the fonts that the browser has had to download.

The font scales so that it can fit within the resource content area; therefore, resizing the resource content area also resizes the asset!

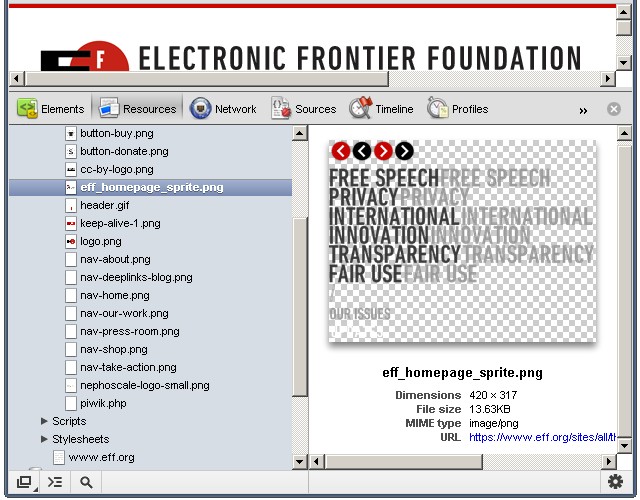

Images

It's clear that some thought went into the image viewing UI.

The developer tools displays the image in the content area, and the image scales according to the content area's size. Images with transparency (like the one in the above screenshot) are shown with a checkerboard in the background, making it easier to view the image. Other useful information, such as the dimensions, file size, and MIME type are displayed below the image.

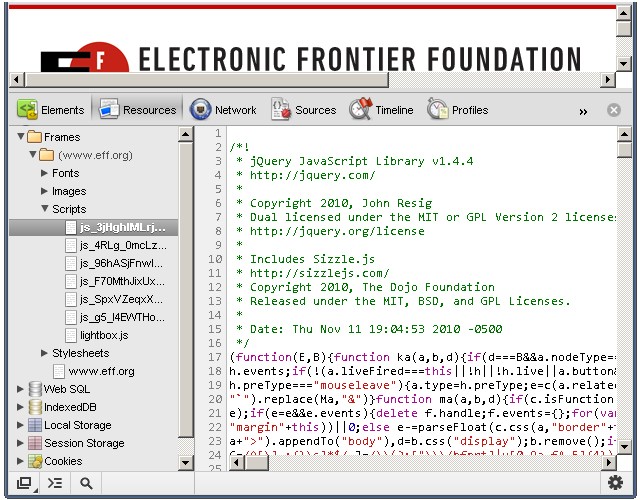

Scripts

The JavaScript! Clicking a script file displays its contents, but not much else.

But don't despair; viewing assets is simply that: viewing assets. In a future tutorial, we'll look at the dev tools' JavaScript support and capabilities.

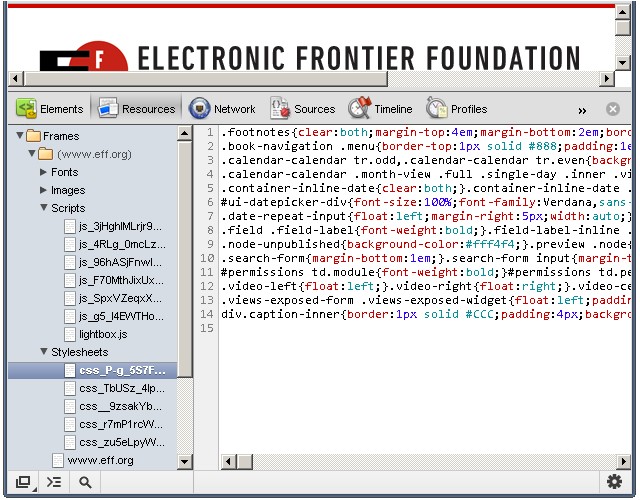

Stylesheets

You can view the different stylesheets that the browser loaded for the web page.

As with JavaScript files, you cannot do much with the stylesheet assets.

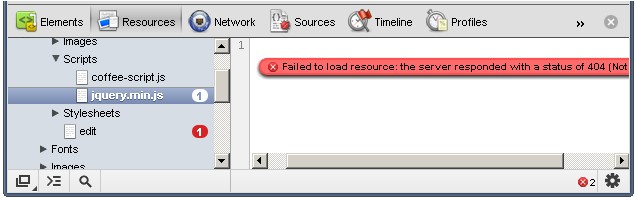

Resources that Failed to Load

Occasionally, the browser will be unable to load a particular resource due to network issues or developer error.

When this happens, a small red notification appears to the right of the asset. The number states how many errors occurred, and the content pane provides more details about the error.

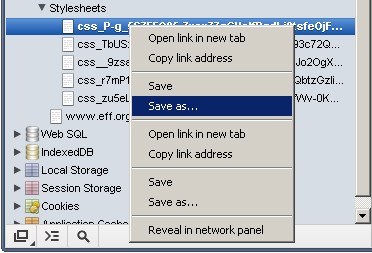

Saving and Viewing Resources

Each resource has a context menu; simply right-clicking on a resource shows a menu similar to this:

You can save a resource to your computer, open a resource in a new tab, and perform many other tasks. Double-clicking the resource opens the asset in a new tab.

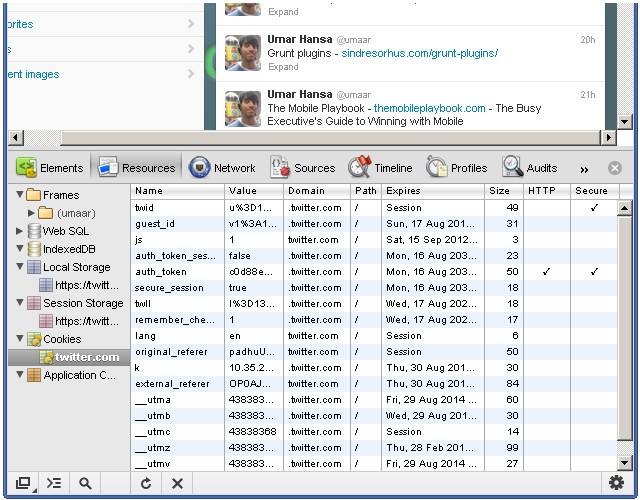

Cookies

As I previously mentioned, you can view cookie information for a particular website. For example, navigating to Twitter while being signed in may present similar information to what is shown in this screenshot:

Here, we see:

When you’re wondering why some floated elements are not behaving as expected, viewing the margin/padding information can help diagnose the problem.

• Name - the name of the cookie. For example, there's a name with "remember_checked" which has a value of 1. This is likely to state whether the user has checked a "Remember me" checkbox during the sign in process.
• Value - the value of the cookie. For the "_twitter_sess" named cookie, there's a long encrypted session ID for the value.
• Domain - the cookie's domain. .twitter.com allows for any sub-domain on twitter.com.
• Path - similar to domain, the path field states valid paths. "/" allows for all paths.
• Expires - the date the browser delete the cookie.
• Size - the size of the cookie in bytes.
• HTTP - force the cookie to only be accessed via the HTTP protocol. This prevents accessing of cookies via JavaScript and can help combat cookie stealing through cross site scripting.
• Secure - instructs the browser to communicate cookie data only through encrypted connections such as HTTPS

You can delete a cookie by right-clicking on a cookie and selecting Delete from the context menu.

It's interesting to note how browsers use cookie information to determine whether you are an authenticated user. While logged in to Twitter, deleting the "auth_token" and "_twitter_sess" cookies prompts us to login after refreshing the page. Twitter likely stores our logged in status and other bits of sensitive information in those cookies.

Local Storage

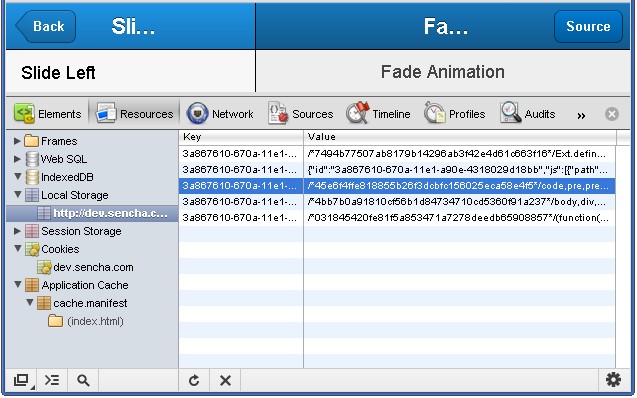

Storing and viewing key/value pairs in localStorage is rather easy. Rather than storing our own keys, we'll use an existing website as an example. The following screenshot shows the local storage view of a Kitchen Sink Example App made with the mobile web application framework Sencha Touch.

When first viewing the page, the browser makes a request for a CSS file. Refreshing the page feels a lot snappier because Sencha stored the CSS in local storage. The kitchen sink app has some interesting key/value pairs. For example, one key looks like this:

3a867610-670a-11e1-a90e-4318029d18bb-http://dev.sencha.com/deploy/touch/examples/production/kitchensink/resources/css/app.css

The value for that key begins with this:

/*45e6f4ffe818855b26f3dcbfc156025eca58e4f5*/code,pre,pre *{font-family:Menlo,Monaco,Courier,monospace}

Steve Souders wrote about storing assets in local storage; it's an interesting and exciting use of local storage which can improve performance--especially on mobile devices.

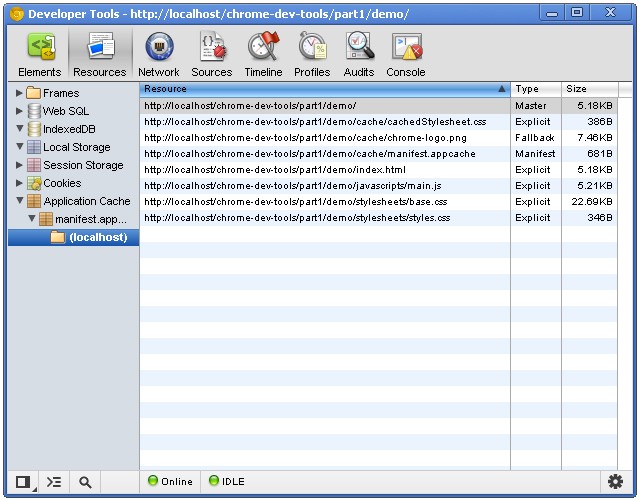

Application Cache

The application cache tells the browser which resources it should cache, and the Application Cache category lets us view what has been cached.

There are three columns with this view:

• Resource - the full path of the resource. File extensions are typically assets and HTML files. One of the resources is the manifest file itself!
• Type - can vary. The "Manifest" type is a unique type given to the manifest file itself. Another type is explicit: resources that are explicitly defined in the manifest file. The type of fallback indicates a resource that acts as a fallback for another resource. The Master type is the resource which initiated the cache: the page itself.
• Size - the size of the resource in kilobytes or bytes.

See this tutorial if you're not familiar with HTML5 application cache.

See you soon

We're just getting started. In Part two, we'll look at more panels with a slight focus on performance, so that we can provide a better user experience.
