JavaScript Debugging Using Cross-Browser Source Maps

As a JavaScript developer, I’m sure you’ve already been falling into this scenario: something goes wrong with the production version of your code, and debugging it directly from the production server is a nightmare simply because it has been minified or has been compiled from another language such as TypeScript or CoffeeScript.

The good news? The latest versions of browsers can help you solve this problem by using source maps. In this tutorial, I’ll show you how to find source maps in all of the browsers and get the most out of those few minutes you have to debug.

Wait, What Are Source Maps?

According to the great Introduction to JavaScript Source Maps article, a source map is “a way to map a combined/minified file back to an unbuilt state. When you build for production, along with minifying and combining your JavaScript files, you generate a source map which holds information about your original files”.

Please don’t hesitate to read Ryan Seddon’s article first, as it goes in great details on how a source map works. You’ll then learn that a source map uses an intermediate file that does the matching between the production version of your code and its original development state. The format of this file is described here: Source Map Revision 3 Proposal.

Now to illustrate, I’m going to share the way we’re currently working while developing our WebGLBabylon.js open-source framework. It’s written in TypeScript. But the principles will remain the same if you’re using plain JavaScript compressed/minified or other languages such as CoffeeScript.

Let’s now play with the source map magic directly in the browsers.

The Demo Page We’re Going to Use

Recently, I’ve been implementing the support of the Gamepad API in our gaming engine. Let’s use its code for this tutorial.

In this article, I’m using the following browsers:

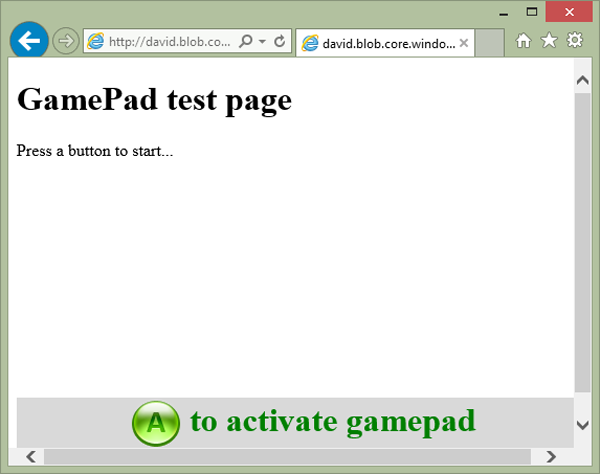

Navigate to this URL: http://david.blob.core.windows.net/babylonjs/gamepad/index.html and you’ll obtain this page:

GamePad test page

Plug an Xbox 360 or Xbox One controller in the USB port of your machine. Press the A button to activate the gamepad and play with it:

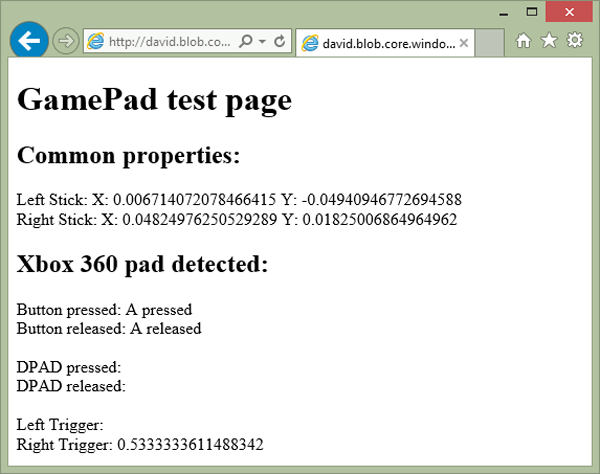

GamePad test page Common Properties

But don’t worry, you won’t need a gamepad controller to follow this tutorial.

Note: The TypeScript compiler is automatically generating the source map for you. If you’d like to generate a source map while generating your minified version of your code, I would recommend using UglifyJS2.

For this article, I even mixed both. I’ve minified the JS generated by TypeScript and kept the source mapping intact using this command line:

How to Debug With the Original Source Code

Using Internet Explorer 11

Once the GamePad test page has loaded, press F12 in IE11.

You’ll see that the HTML source is referencing two JavaScript files: babylon.gamepads.js at the beginning of the page and testgamepad.min.js at the very end. The first file is coming from our framework on GitHub, and the second one is a simple sample showing how to consume it.

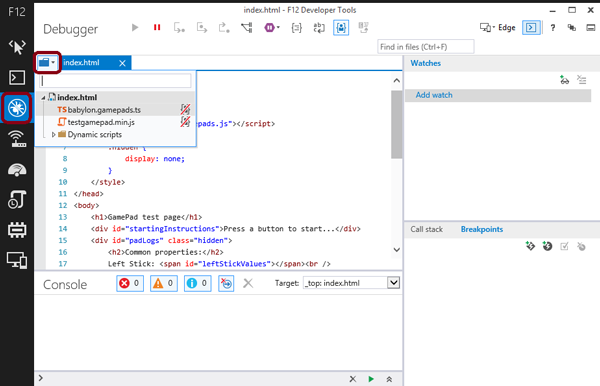

Press on the Debugger button (or Control-3), and then press on the folder icon.

You’ll see that IE11 offers two files to debug: babylon.gamepads.ts and testgamepad.min.js.

Debugger screen in Internet Explorer

Let’s start by reviewing the babylon.gamepads.ts case. Why does IE show it instead of the .js version being executed by the browser?

This is thanks to the source map mechanism. At the end of the babylon.gamepads.js file, you can find this specific line:

Open babylon.gamepads.js.map to understand how it works:

By reading this JSON file, IE11 knows it should map “babylon.gamepads.ts” to “babylon.gamepads.js”. That’s why it directly offers to debug the TypeScript source instead of the compiled JS version.

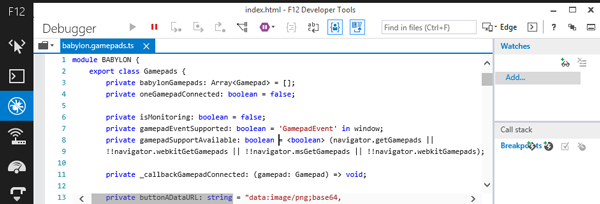

Open babylon.gamepad.ts in the IE11 F12 console and you’ll see something you've maybe never seen before, some TypeScript language:

babylongamepadts in the IE11 F12 console showing TypeScript language

You can debug it as you’re used to debugging your JS code, even if it’s the compiled JavaScript version currently being executed by the browser.

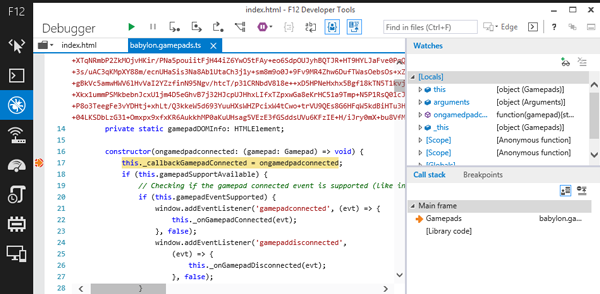

Set a breakpoint on line 17 and press F5 in the browser window. You’ll be able to debug the TypeScript version of the constructor:

Line 17 highlighted in the debugger

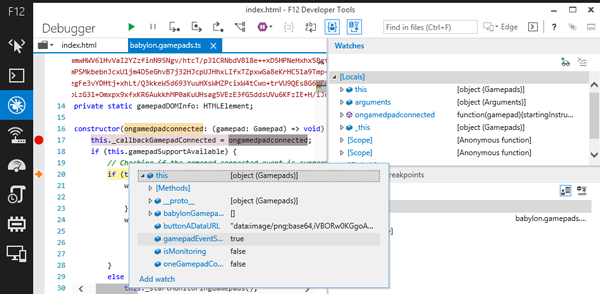

Step up to line 20, mouse over this and expand it to check that gamepadEventSupported is set to true:

Step up to line 20 mouse over this and expand it to check that gamepadEventSupported is set to true

Using Chrome/Opera

Load the same page: http://david.blob.core.windows.net/babylonjs/gamepad/index.html and press F12 in Chrome or Control-Shift-I in Opera.

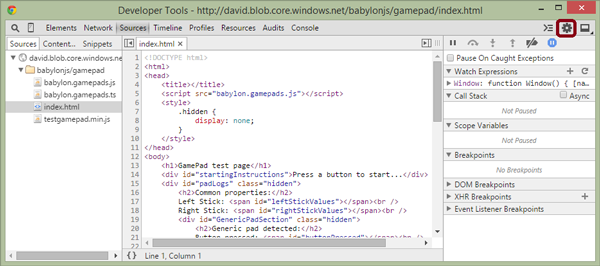

Chrome Developer Tools page

Click on the configuration icon and make sure that the Enable JavaScript source maps option is enabled. It should be set by default:

Enable JavaScript source maps option checked

Chrome and Opera let you review the executed babylon.gamepads.js code, but if you try to set a breakpoint in the JavaScript version, it won’t display it. It will set it instead in the source code mapped to this version: babylon.gamepads.ts.

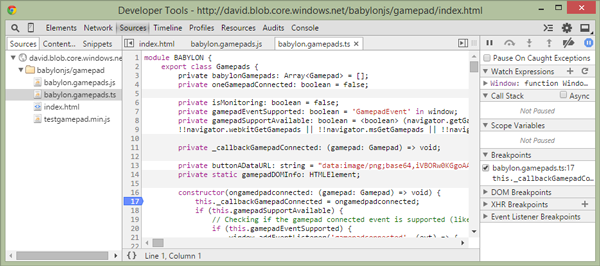

For instance, try to set a breakpoint on line 18 of the babylon.gamepads.js JavaScript file and you’ll see it will be set on line 17 of the babylon.gamepads.ts TypeScript file instead:

line 17 of the babylongamepadsts TypeScript file

Of course, you can also set the appropriate breakpoints directly in the TypeScript source as seen with IE11 just before.

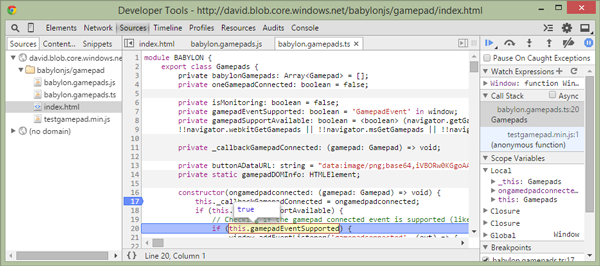

Press F5 in the browser window hosting our demo page and you’ll be now able to debug my TypeScript code. Step up to line 20 and mouse over the this.gamepadEventSupported variable. It should display true:

thisgamepadEventSupported variable displaying true

Using Firefox

Load the same page: http://david.blob.core.windows.net/babylonjs/gamepad/index.html and press Control-Shift-S to open the native debugger (don’t use F12/Firebug, because it doesn’t support source maps).

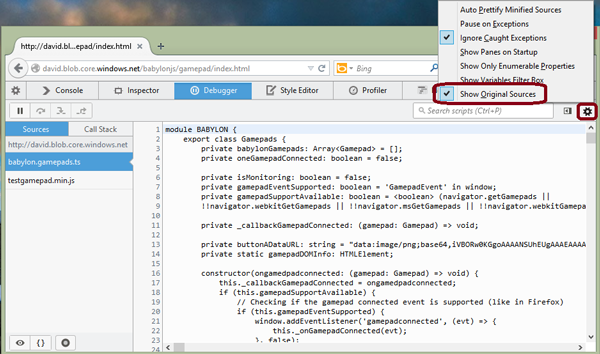

Check that the Show Original Sources option is checked:

Show Original Sources option checked

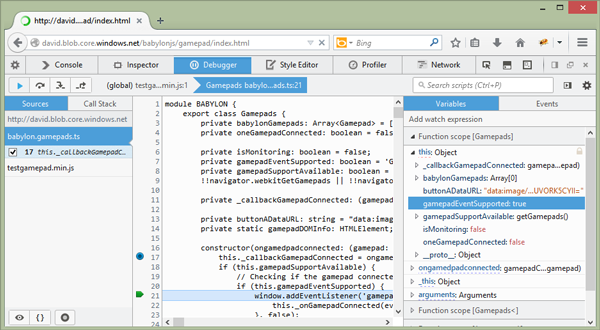

Set a breakpoint as usual on line 17, and reload the page to break into the code. Firefox doesn’t support mouse hovering on the original source. Step up to line 20 and expand the this object instead in the right panel to check that gamepadEventSupported is set to true also.

Line 20

What About the Minified JavaScript File?

Up to now, we’ve been debugging only the babylon.gamepads.js code using the babylon.gamepads.ts source. But what about this minified testgamepad.min.js JavaScript file?

The first solution is to prettify the code. It works with IE11, Chrome, Opera and Firefox.

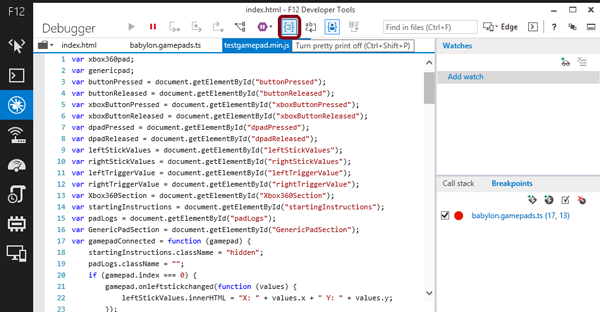

In IE11, press the Pretty print button or press Control-Shift-P:

Pretty print button in IE11

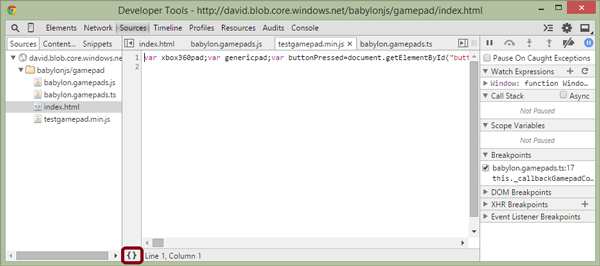

In Chrome/Opera, press the {} button:

In ChromeOpera press the  button

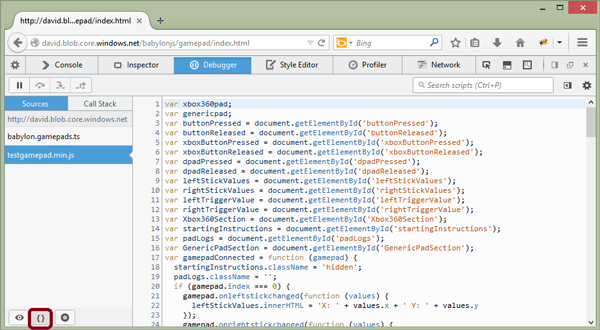

In Firefox, press also the {} button:

In Firefox press the  button

This is much better, but still not as good as it was with the source map set. To be able to go a step further, we added a new feature in the August 2014 update of IE11. You can load a source map even if you’ve removed it from the .js file.

Imagine you’d like to prevent anyone from easily debugging the production code of your web app using source map, but you still want to be able to do so? Just remove the sourceMappingURL line from your .js file.

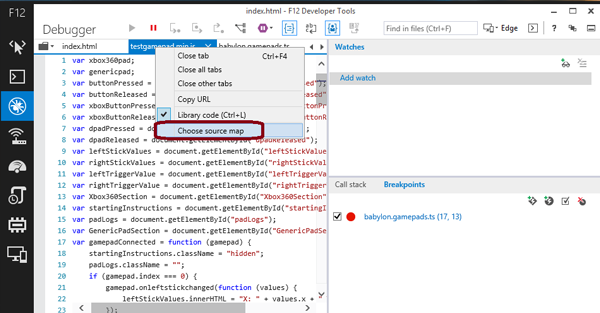

Using Internet Explorer 11, you can still use the source map by loading your local .map and associated source code. For that, right-click on the testgamepad.min.js tab and press Choose source map:

right-click on the testgamepadminjs tab and press Choose source map

Download them here: http://david.blob.core.windows.net/babylonjs/gamepad/testgamepad.zip.

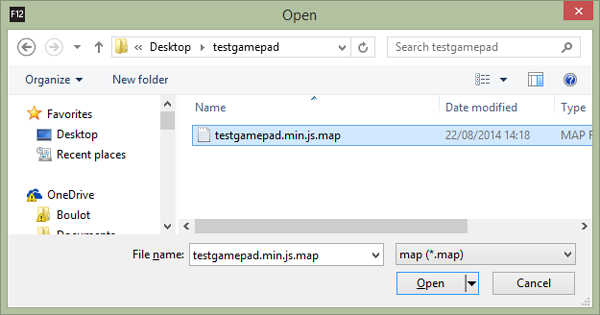

Unzip that in your preferred directory and navigate to it to choose the right .map file:

Open map file dialog box

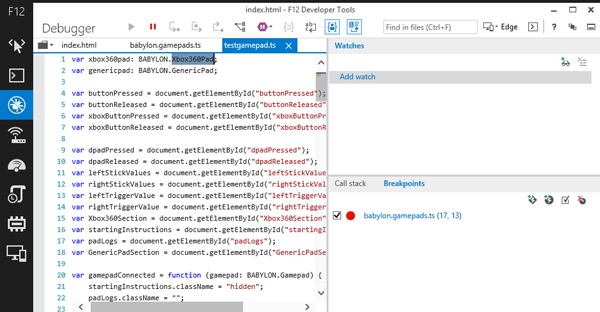

And now the original source code can be debugged again:

F12 debugger screen in IE

Notice that the tab has been renamed to testgamepad.ts and that the first variables are now typed as we’re displaying some TypeScript.

Cool, isn’t it?
