Create a Custom Caching Adapter in OpenCart

No matter the web framework you’re working with, caching is an important tool to have in the kitty to improve the overall performance of your website. You have different caching mechanisms to choose from, like file, APC, Memcached and more. You can decide based on your requirements, and sometimes it takes a combination of more than one adapter to justify the desired outcome.

OpenCart already includes a couple of caching adapters in the core, and that’s what provides a template to follow should you want to create a custom one. To implement a custom adapter, you just need to create methods as per the contract and include your logic in each method, and you’re done! It’ll be picked up automatically as a part of the OpenCart caching mechanism.

For each caching adapter, it’s only the underlying mechanism to store and retrieve data that changes. The same is true for our custom database caching adapter too, and that’s why we need to create a custom schema that holds the caching data.

Make sure that you’ve installed the latest version of OpenCart before we go ahead and start creating a custom adapter.

Create an Adapter Schema

It’s a dbcache MySQL table that’s going to hold our caching data. So, let’s create it!

The important thing to note here is the database prefix; if you’re using it, make sure that you name your table accordingly. For example, in the case of database prefix oc_, you should create a table named oc_dbcache.

Other than that, the structure of table is quite simple, and it holds only three columns—key, value, and expire. The key column holds the caching key, the value column holds the associated value, and the expire column holds the UNIX time-stamp.

Create an Adapter File

You’ll find all the caching adapters provided by OpenCart under the system\library\cache directory. Our custom adapter must go there too, so let’s create a file system\library\cache\database.php with the following contents.

As per the conventions, the class Database is defined under the Cache namespace. There are two properties, $_db and $expire$_db holds the database instance, and $expire is set to cache lifetime when the class is instantiated. The reason behind declaring the $_db property as static is the singleton object it holds.

In the constructor of class, we’re assigning the caching time passed from the OpenCart framework to the $expire property and calling the initDbInstance method defined in the same class that creates and assigns a database instance to $_db if it doesn't already exist.

Next, the get method is used to fetch a cache entry by key and expire time, and the set method is used to insert a new cache entry in the database. Also, we’re serializing the cache data in the set method to make sure that it’s stored properly. Of course, we need to unserialize it in the get method before we actually return it!

Finally, there’s a delete method that deletes an entry from database. It’s interesting to note here that the set method calls the delete method every time to make sure that we don’t end up creating duplicate cache entries!

So, that’s it as far as our custom caching adapter file setup is concerned. In the next section, we’ll see how to plug it in to the OpenCart core framework.

Plug in Our Custom Caching Adapter

Unfortunately, there’s no back-end configuration that allows you to plug in your custom caching adapter. So, for the sake of this tutorial, we’ll go ahead and directly influence the way it’s handled in the core.

Go ahead and open index.php under the document root of your site.

Find the following snippet.

Replace it with:

So, as you can see, we’ve just changed the argument, or rather the adapter name, that’s passed when creating a new $cache object.

In the same way, do it for the index.php file that resides under the admin directory. It makes sure that both the front-end and back-end use our custom caching adapter.

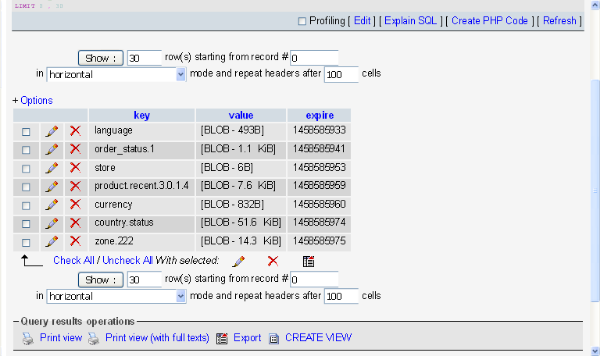

You’re almost done! Go ahead and visit a couple of pages in the front-end and back-end, and you should see that the dbcache MySQL table is being filled up with new records!

Cache Entries

In this way, you could go ahead and create a caching adapter for other storage engines as well. Although we’ve demonstrated it in a simple way, I think it’s the concept that matters the most for your next custom adapter!

Conclusion

As always, if you're looking for additional OpenCart tools, utilities, extensions, and so on that you can leverage in your own projects or for your own education, don't forget to see what we have available in the marketplace.

Today, we’ve discussed how to create a custom caching adapter in OpenCart. The database caching adapter was created in the process for demonstration. Feel free to post your queries using the feed below!
