iOS 5 SDK: UIAlertView Text Input and Validation

With the release of the iOS 5 SDK, the UIAlertView class has been updated to natively support text input, secure text input, and username/password form fields. This quick tip will demonstrate how to take advantage of these new enhancements!

In a previous full-length tutorial for beginners, I walked the reader through setting up a project with a custom button and background. I'll use the project created in that tutorial as the starting point for this one.

Introducing Alert View Styles

The layout and form elements of a UIAlertView can now be easily and quickly controlled by setting the alertViewStyle property. Possible options for this property include:

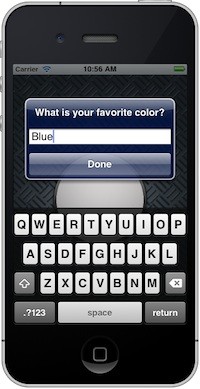

This style will add a single text field to the alert view:

UIAlertViewStylePlainTextInput Figure

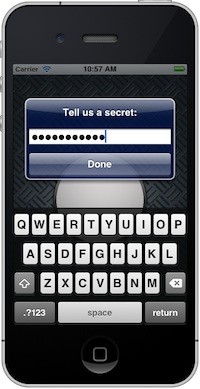

This style is just like the plain text field, except that all characters entered will be obscured:

UIAlertViewStyleSecureTextInput Figure

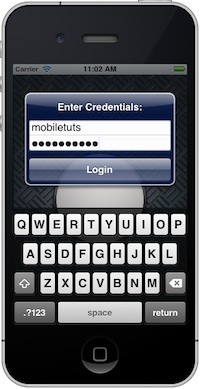

Setting this value for the style property will add both a regular text field input for a username and a secure text field input for a password:

UIAlertViewStyleLoginAndPasswordInput Figure

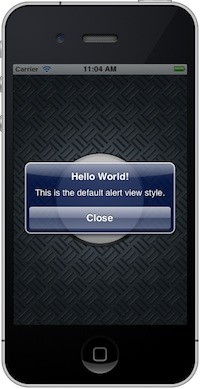

This is the default style we all already know and love:

UIAlertViewStyleDefault Figure


Any of the above styles are as easy to implement as setting the alertViewStyle property on your UIAlertView, either with dot notation:

Or by directly calling the setter method:

That's it! After you've set this property, the alert view display will adjust accordingly.

Of course, displaying text fields on the alert view won't do much good unless you can also access the value the user enters. This is done with the textFieldAtIndex: method. You simply supply the index of the text field you want to access (0 - 1 in the examples above), and the relevant UITextField object is returned.

For an example of how this might work, consider the -alertView:clickedButtonAtIndex: delegate method we've already implemented in the attached demo project. If we change the alert view style to UIAlertViewStyleLoginAndPasswordInput and change the default button title to "Login", then we could access the values entered by the user in the delegate method like so:

Potential Pitfalls

There a few ways that using the new alert styles might backfire.

Too Many Buttons

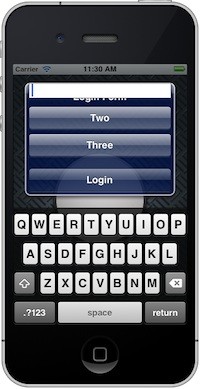

If you add as few as three buttons to the UIAlertView, the layout of each new style will become skewed.

UIAlertView Figure

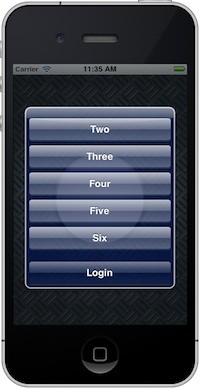

All of the new styles can handle 2 buttons comfortably, but the default style used in the past can handle up to 6 when the title and message is removed:

UIAlertView Figure

Too Much Text

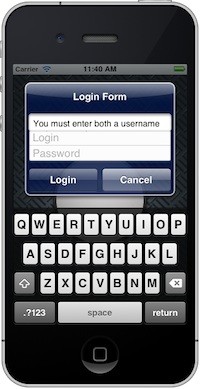

The UIAlertViewStyleLoginAndPasswordInput style can't handle overflow text gracefully the way the other styles can:

UIAlertViewStyleLoginAndPasswordInput Figure

Even entering just a brief message like "You must enter both a username and password." was enough to ruin the aesthetic.

Validating Input

In addition to the button styles discussed above, the iOS 5 SDK also introduced a new UIAlertViewDelegate method, -alertViewShouldEnableFirstOtherButton:. This method is called both when the alert view is first displayed and also each time the user types a character into one of the text fields, making it very easy to perform basic input validation prior to accepting a user's value.

Consider the following example:

The code above will only allow the user to press the "Continue" button after they have entered at least 10 characters into the form field. I'm sure you'll want to make your own validation more robust, but this basic example shows just how useful this new delegate method can be.
