Five Tips for Creating Stylish UIButtons

Sometimes it only takes a few lines of code to make your interface pop. This tutorial will teach you five simple tricks for creating stylish UIButtons to make your app standout!

Subsequent Changes to Techniques & Software

Certain aspects of applications or techniques used in this tutorial have changed since it was originally published. This might make it a little difficult to follow along. We'd recommend looking at these more recent tutorials on the same topic:

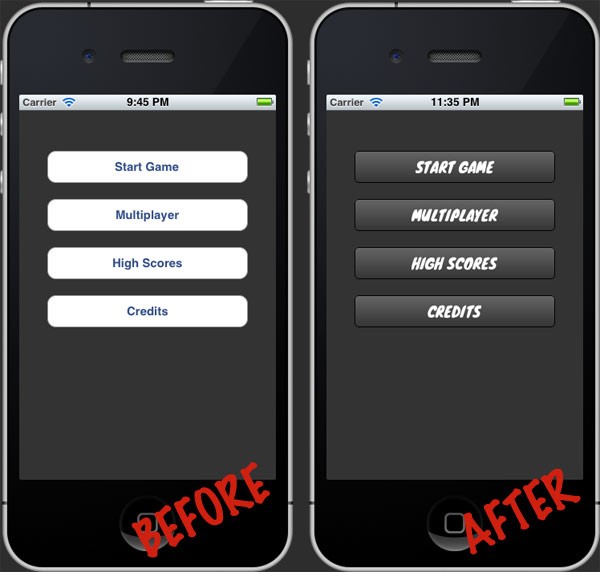

Project Preview

Project Demonstration

Project Setup

In the download that accompanies this tutorial, you'll find folders entitled "Initial Build" and "Final Build". Rather than showing all the steps necessary to setup the initial project, you should simply download the attachment and follow along using the project from the "Initial Build" folder.

With the initial project open, go to the ViewController.m file and locate the for loop within the viewDidLoad method. The code snippets from the tips below should be placed within this loop.


Tip #1: Tweak Colors & Gradients

The most fundamental step toward customizing the UIButton class is to adjust the color of the background and title for both the default and highlighted states. The following code snippet sets each button's background color to black, normal title color to white, and highlighted title color to red:

Solid background colors are great, but a subtle gradient can often make the difference between bland and polished. Replace the setBackgroundColor: message above with the following to create a custom gradient:

Starting on line 4 above, an NSArray is created with the initial and target gradient colors. Note that the corresponding RGB values must be divided by 255 before being supplied to the colorWithRed:green:blue:alpha: message and that an alpha value of 1.0 represents fully opaque while an alpha value of 0.0 represents fully transparent. Unfortunately, a full explanation of the "magic" above is beyond the scope of this tutorial, but the important thing to remember is to that you simply need to replace the RGB values with the begin/end values you want to use in your own custom gradient.

If all went well, your menu should now look something like this:

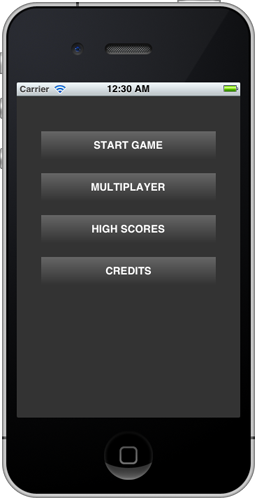

Custom Color and Gradient

Not bad, huh? And we've only just begun. . .


Tip #2: Round the Corners

Next we want to add a custom corner radius to each UIButton in order to make things look a bit more sleek. Insert the following lines of code to make this happen:

In line 4 above the corner radius is set to 5.0. Play with this number to increase or decrease how noticeable the corners appear.

You should now have a menu that looks just a bit slicker:

Adding Corner Radius

Tip #3: Add a Stroke Border

Sometimes the small tweaks make all the difference. Add a 1px, black stroke around each button with the following lines of code:

Can you tell the difference? It's very subtle, but still valuable:

Adding A 1px Border

Tip #4: Use a Custom Font

Now let's try a more noteworthy tweak. The default system font just isn't cutting it. The game menu we're building needs a font that can match the visual aesthetic of the game. A quick search on Google Fonts reveals just a font called Knewave by Tyler Finck that should do the trick. Download Knewave now.

After downloading the Knewave-Regular.ttf file, you'll need to drag it into the Project Navigator pane in Xcode to add it to your project. Next, open up the Info.plist file. Add a new property list row and type in "Fonts provided by application". An array should be created automatically. Set the string associated with Item 0 to "Knewave-Regular.ttf". Double check the name because the value is case sensitive. Save the file.

After making the above modification, your Info.plist file should now look like this:

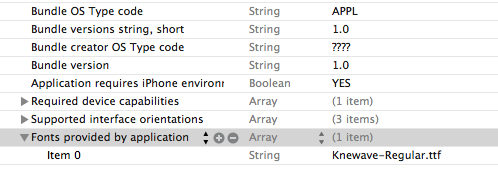

Plist Entry

Next, you'll need to add the Knewave-Regular.ttf file to your project's bundled resources. Select "SleekButtons" from the Project Navigator and then click the "Build Phases" tab. Expand the "Copy Bundle Resources" drop down and then click the plus sign.

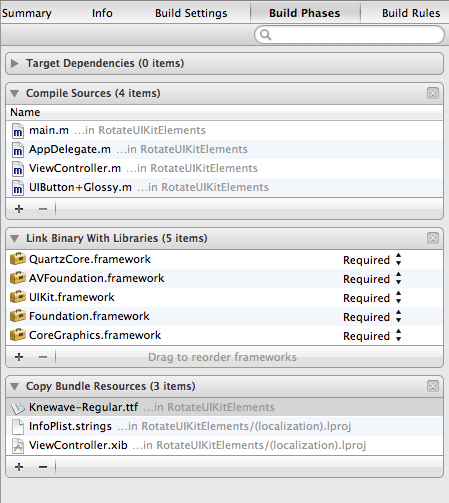

Adding to Bundled Resources

At this point, you should be able to begin using the Knewave font in your project! Let's test that out by jumping back to the ViewController.m file and modifying the viewDidLoad method to set a custom font:

Notice that the fontWithName value is specified as "Knewave", not "Knewave-Regular" as you might expect. This is because there is a difference between the font's filename and the font's given name. You'll need to be sure you use the given name when working with your own fonts.

With the above code in place, the game menu should be complete! Build and run now and you should see something like the following:

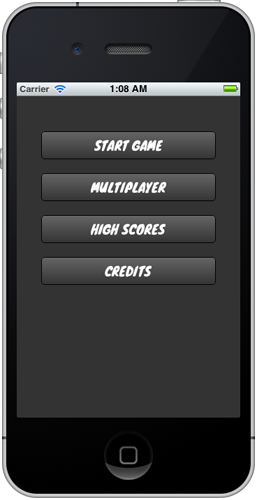

Custom Fonts

Tip #5: Optional: Apply a Rotation

While not utilized in the primary design demonstrated by this tutorial, it's often useful to apply a slight rotation to UIKit elements, particularly UIButton or UIImage objects. Doing so is simple, and can be done with just one line of code.

You can try this out with the code written so far by doing the following:

In line 1 above, the constant M_PI is divided by 180 to generate 1 radian, which is then multiplied by 5.0f to result in a rotation of 5 radians. As you will notice if you build and run the project, the above is likely to result in anti-aliasing problems with UIKit elements that are drawn dynamically. Consequently, applying a rotation is more appropriate with a UIButton when the background image property is set and raster graphics are in use (i.e. this works best with PNG files).


Bonus Tip: Use UIButton-Glossy

With the five tips above, you've seen how easy it can be to make subtle yet significant tweaks to a UIButton object. However, what if I told you that doing so could be even easier? Meet UIButton-Glossy, an open-source category by George McMullen that automatically applies both a gradient and a glossy finish to UIButton objects.

Implementing UIButton-Glossy in your own project is simple. After you've downloaded the UIButton-Glossy.h and UIButton-Glossy.m files and added them to your Xcode project, import the *.h file in the main project view controller, like this:

Now you can instantly apply a cool glossy effect on your buttons with just one line of code: [btn makeGlossy];.

To see this in action, replace the existing view controller code with the following:

Your buttons should now have a glossy finish and the end result should look something like this:

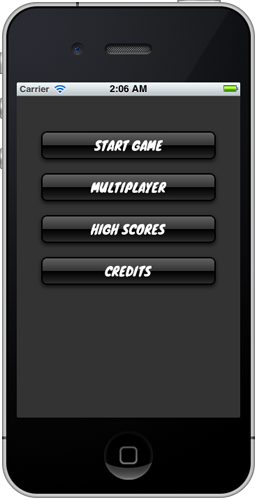

Glossy Finish

Wrap Up

This tutorial has demonstrated multiple techniques for making custom UIButton objects shine. Download the attached project for a glimpse at the full, final source code.

Questions? Comments? Sound off below or message me directly @markhammonds.
